3D laser beam machine
We use 3D laser beam machine made by Mitsubishi Electric.
It can manage various cutting and processing.
For example,processing complexly shape,additional products(cutting shape of the panel・diagonal cutting tube),and processing acrylic board.

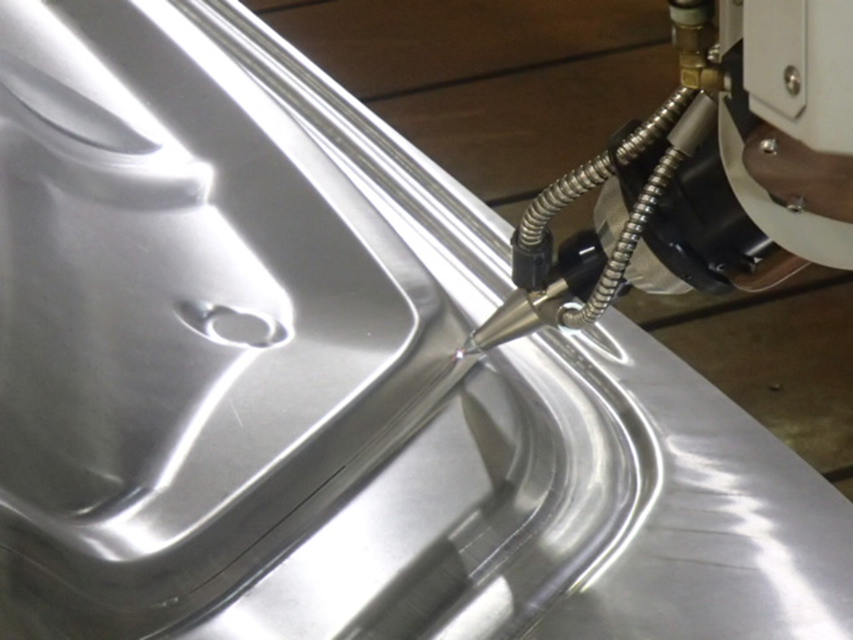

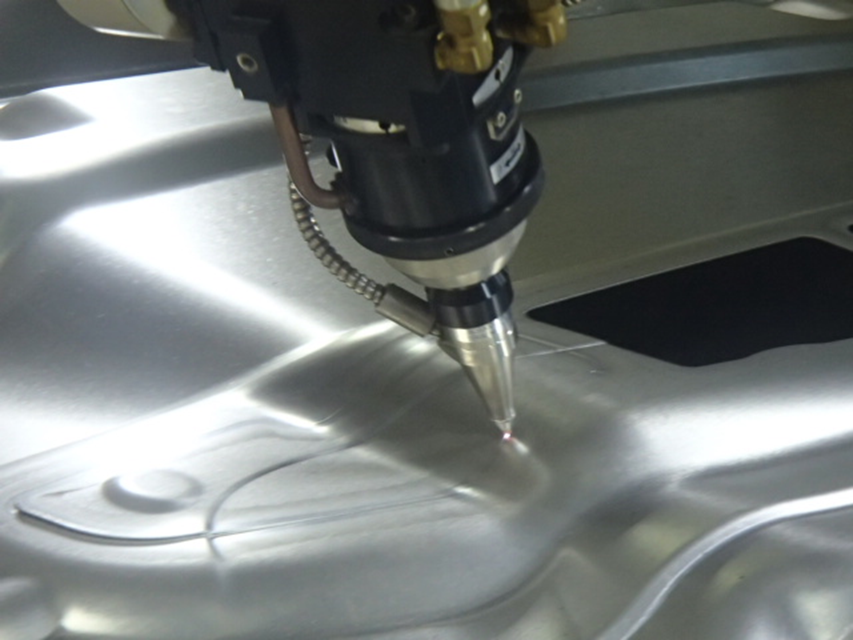

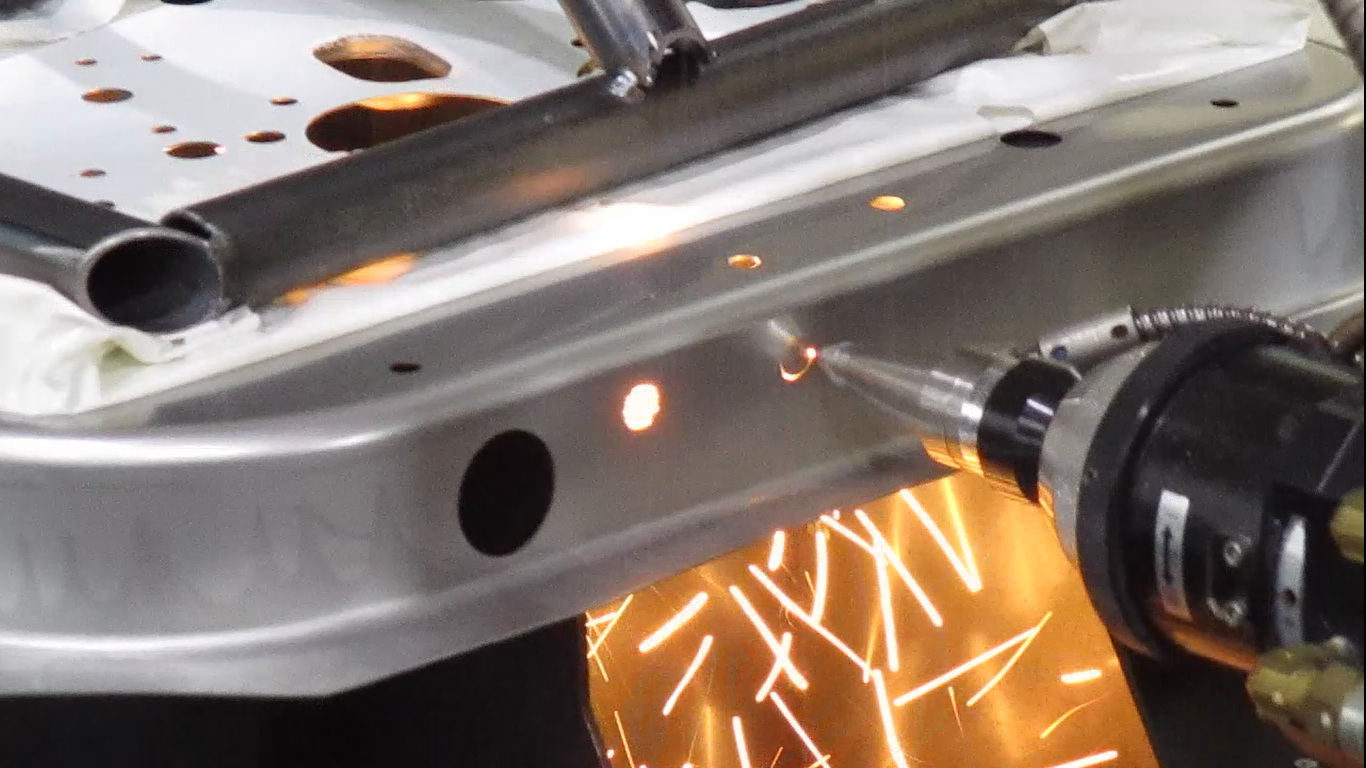

Processing the panel

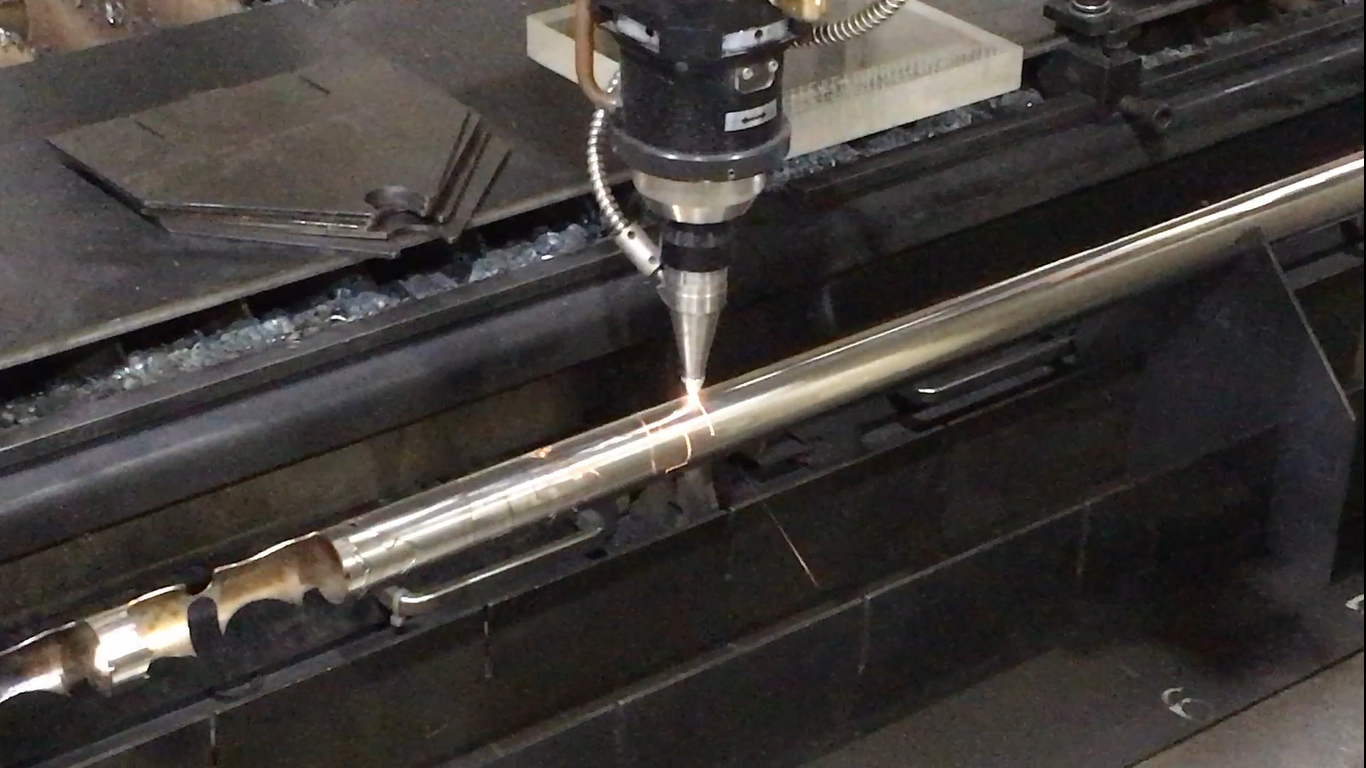

Diagonal cutting the tube

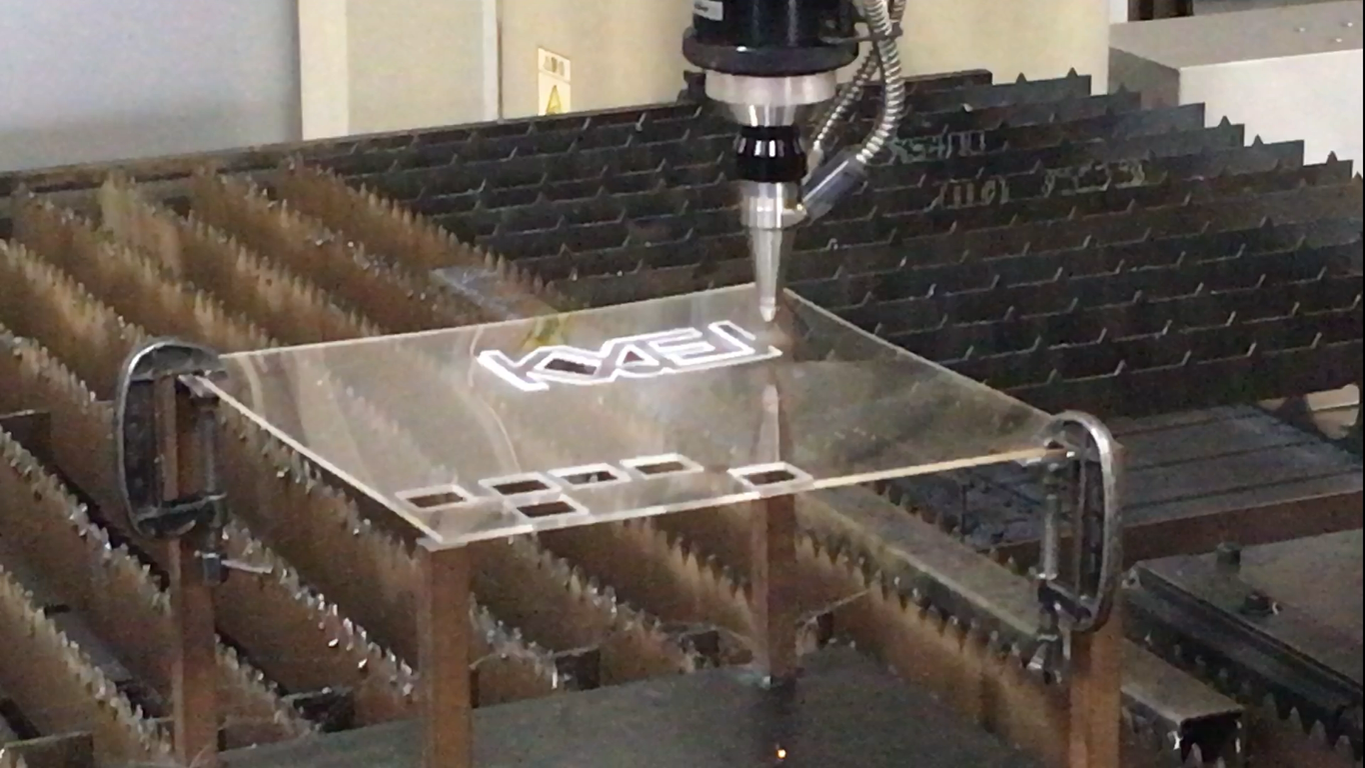

Processing acrylic board

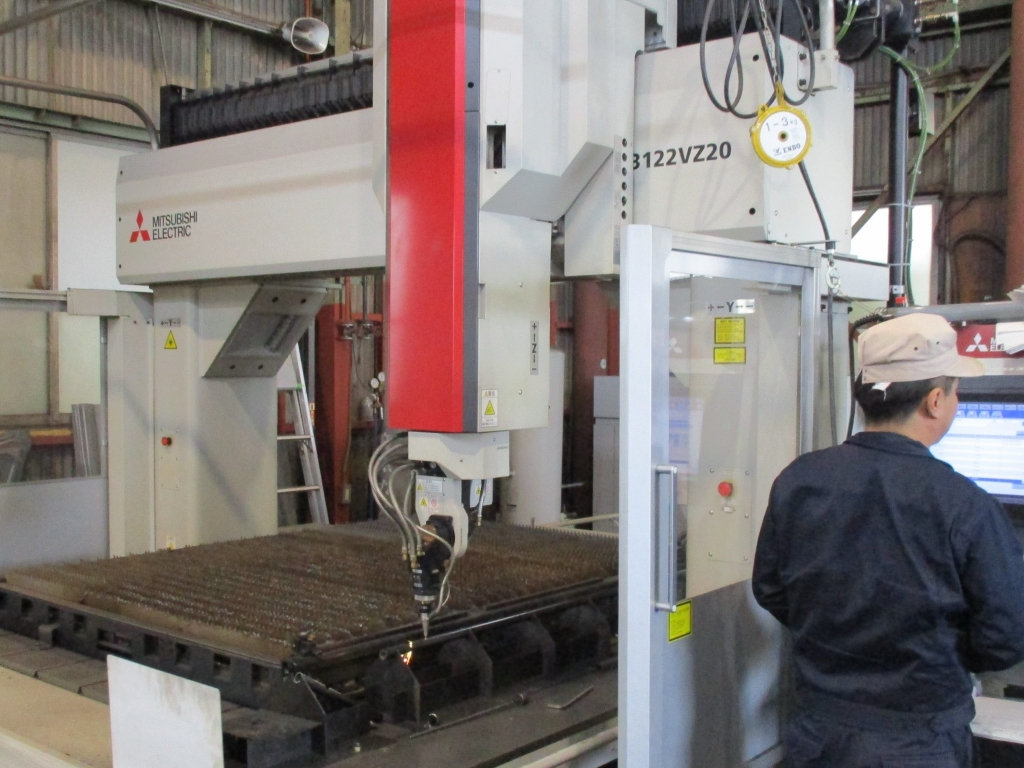

Laser body



Overview of machine

  • Machine name:Mitsubishi Electric 3D laser beam machine VZ20
  • Specification:Processing range width 1,600mm×length 2,500mm
  • Solid work:height until 550mm
  • Oscillator:2kw

Something which can be processed

  • Aluminum:until t6mm
  • SS400:until t12mm
  • Acrylic board:(to be discussed)
  • Stainless steel:until t9mm
  • Round tube:
    　Rotary tables made by YUKIMI
    　We can process at most φ250mm
